These are the instructions for how to RDP from a MacOS computer to a PC. Mac to Mac is not possible with this client. It is for all current MacOS supported by the USGS.
Make sure you are using the latest version of the MS Remote Desktop App

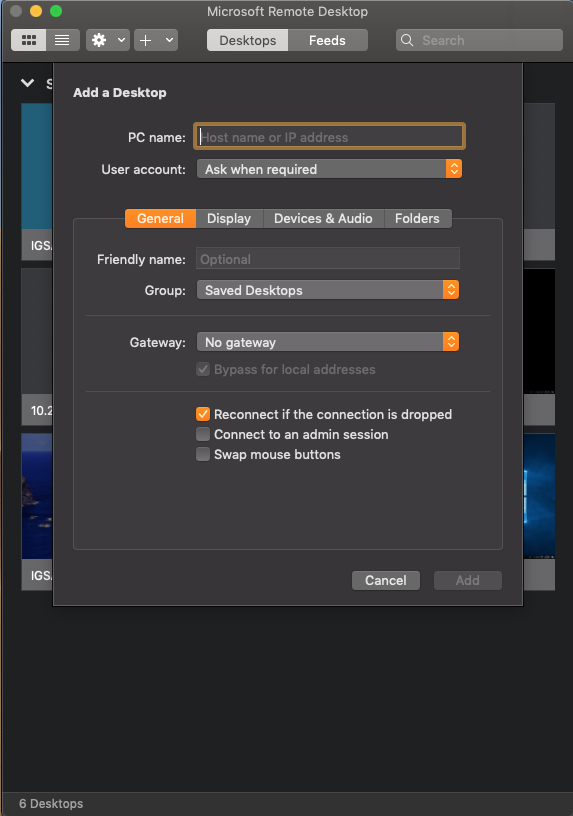

Click + at the top of the Microsoft Remote Desktop Window and select Desktop

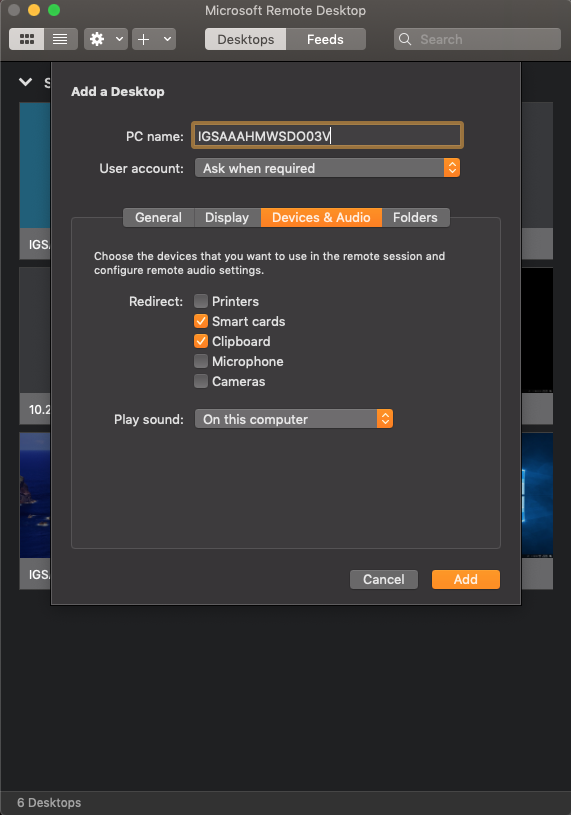

Add the PC name or IP Address, Then click the Devices & Audio Tab and Select Smart Cards under Redirect. Leave everything else as default.

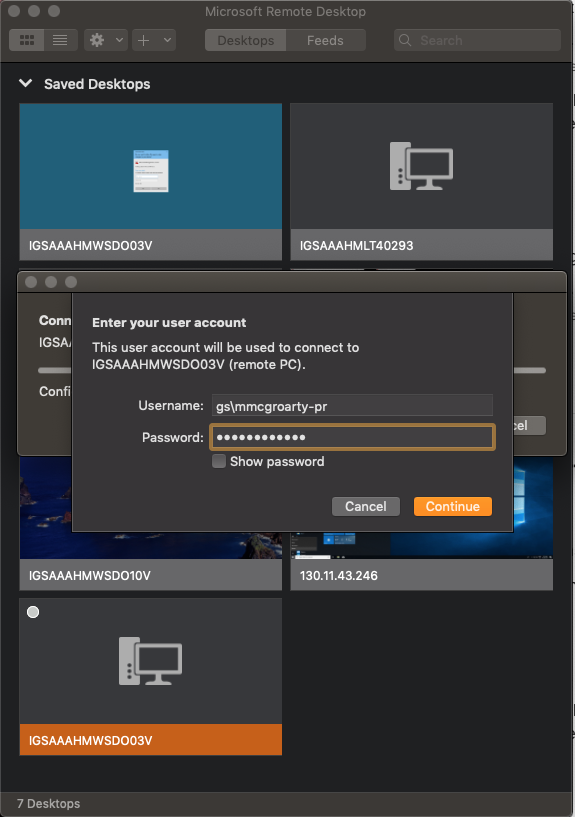

When prompted for a User Account, Type in your user account with gs\ (ex: gs\mmcgroarty-pr) Then enter your AD Password and click Connect.
(If user does not have a PR you must configure Remote access to the target machine by following the instructions here:

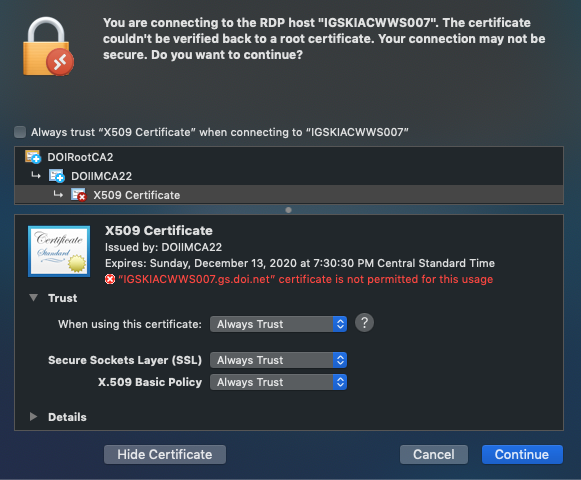

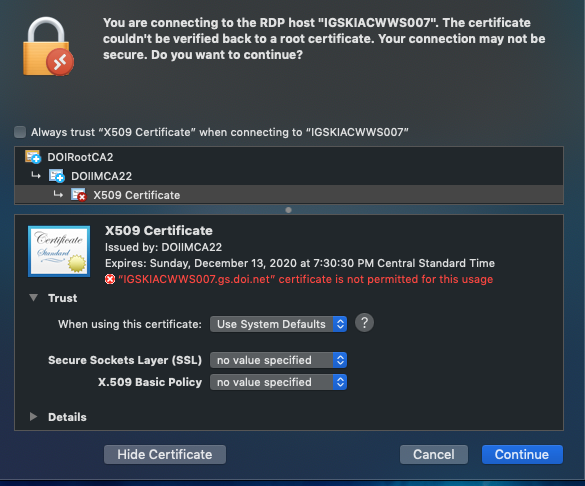

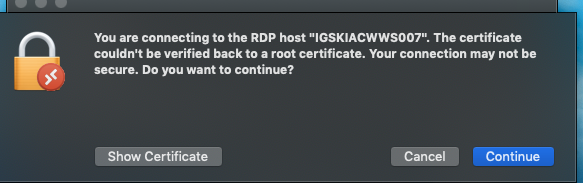

If you see this window, then you need to approve the certificate so it will pass through when trying to sign into a Windows computer. Select Show Certificate, expand the “Trust”, then in each drop down window, select “Always Trust”. When you see the Cert Prompt click Continue

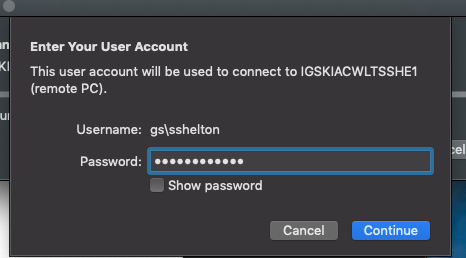

Once Certificate shows blue and Trusted, you should receive following prompt to enter AD credentials (AD username and AD Password).

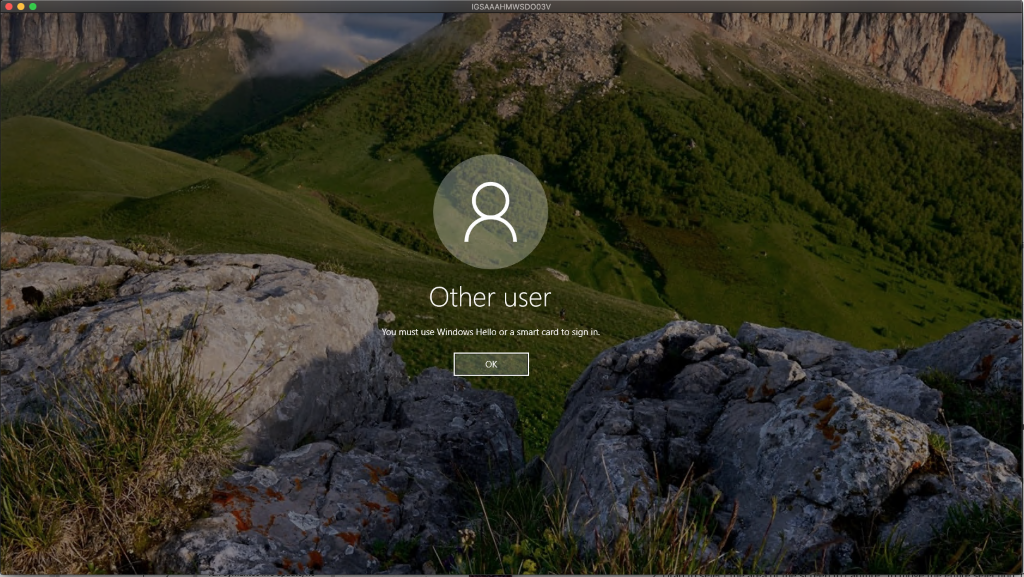

Once connected to the machine you will be alerted that you must sign in with Smart Card, Click OK

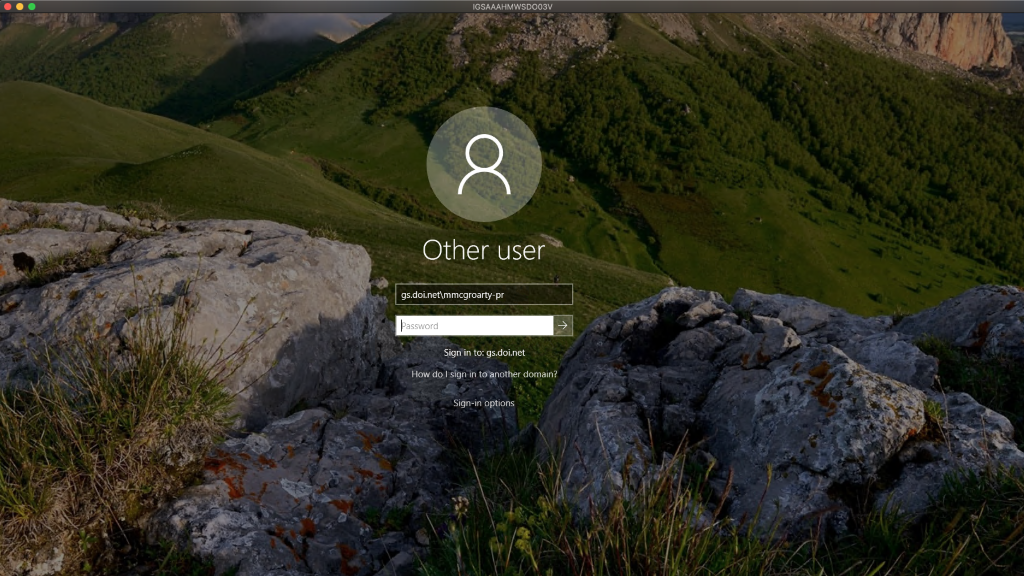

Click Sign in Options bottom and select Smart Card
Login with PIN
