Microsoft SQL Server

The following table describes the editions of SQL Server.

SQL Server Edition	Definition
Enterprise	The premium offering, SQL Server Enterprise edition delivers comprehensive high-end datacenter capabilities with blazing-fast performance, unlimited virtualization1, and end-to-end business intelligence – enabling high service levels for mission-critical workloads and end-user access to data insights.
Standard	SQL Server Standard edition delivers basic data management and business intelligence database for departments and small organizations to run their applications and supports common development tools for on-premises and cloud – enabling effective database management with minimal IT resources.
Web	SQL Server Web edition is a low total-cost-of-ownership option for Web hosters and Web VAPs to provide scalability, affordability, and manageability capabilities for small to large-scale Web properties.
Developer	SQL Server Developer edition lets developers build any kind of application on top of SQL Server. It includes all the functionality of Enterprise edition, but is licensed for use as a development and test system, not as a production server. SQL Server Developer is an ideal choice for people who build and test applications.
Express Editions	Express edition is the entry-level, free database and is ideal for learning and building desktop and small server data-driven applications. It is the best choice for independent software vendors, developers, and hobbyists building client applications. If you need more advanced database features, SQL Server Express can be seamlessly upgraded to other higher end versions of SQL Server. SQL Server Express LocalDB is a lightweight version of Express that has all of its programmability features, runs in user mode and has a fast, zero-configuration installation and a short list of prerequisites.

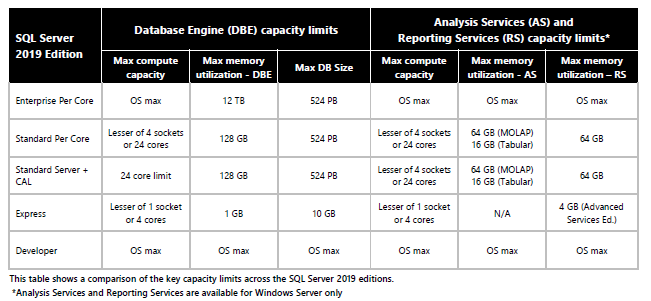

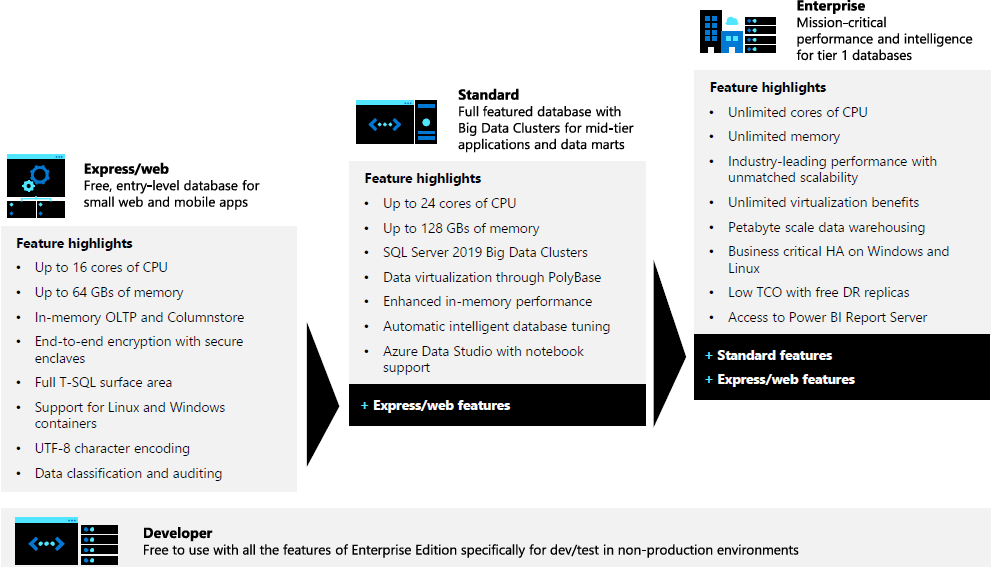

Feature Highlight Comparison (SQL Server 2019)

Please submit a Remedy ticket to the Enterprise Licensing queue (via an email to ServiceDesk@usgs.gov) for pricing information and to purchase licenses for SQL Server.

Licensing Models

PER CORE: Gives customers a more precise measure of computing power and a more consistent licensing metric, regardless of whether solutions are deployed on physical servers on-premises, or in virtual or cloud environments.

• Core based licensing is appropriate when customers are unable to count users/devices, have Internet/Extranet workloads or systems that integrate with external facing workloads.
• To license a physical server—when running SQL Server in a physical OSE—all physical cores on the server must be licensed.
• A minimum of four core licenses are required for each physical processor on the server.
• Available on SQL Server Standard and Enterprise Editions

SERVER + CAL: Provides the option to license users and/or devices, with low cost access to incremental SQL Server deployments.

• Each server running SQL Server software requires a server license
• Each user and/or device accessing a licensed SQL Server requires a SQL Server CAL that is the same version or newer – for example, to access a SQL Server 2012 Standard Edition server, a user would need a SQL Server 2012 or 2019 CAL
• Each SQL Server CAL allows access to multiple licensed SQL Servers, including Standard Edition and legacy Business Intelligence and Enterprise Edition Servers
• Available only on the SQL Server Standard Edition

Microsoft SQL Server lifecycle dates can be found on here. Beginning with SQL Server 2017, Microsoft adopted a new “Modern Servicing Model” for updating SQL Server. See this page for more information. An excerpt is provided below:

The Modern Servicing Model

Starting with SQL Server 2017, we are adopting a simplified, predictable mainstream servicing lifecycle:

• SPs will no longer be made available. Only CUs, and GDRs when needed.
• CUs will now accommodate localized content, allowing new feature completeness and supportability enhancements to be delivered faster.
• CUs will be delivered more often at first and then less frequently. Every month for the first 12 months, and every quarter for the remainder 4 years of the full 5-year mainstream lifecycle.

10/8/2018: Changes made to the above!

• Starting with SQL Server 2017 CU13,   CUs will be delivered bi-monthly (every other month) instead of quarterly. CU13 is scheduled for 12/18/2018.  We may reevaluate the need to move to a quarterly cadence at year 3 of mainstream support. For more details, please refer to Announcing Updates to the Modern Servicing Model for SQL Server.

Note: the Modern Servicing Model (MSM) only applies to SQL Server 2017 and future versions.

Servicing lifecycle

The servicing lifecycle is unchanged from SQL Server 2016:

• Years 0-5 (Mainstream Support): Security and Functional issue resolution though CUs. Security issues through GDRs.
• Years 6-10 (Extended Support): Security or critical functional issues.
• Years 11-16 (Premium Assurance): Optional paid extension to Extended Support (no scope change).

The following steps will walk you through a clean installation of SQL Server 2019 Standard. Mount the supplied .iso file and run setup.exe as an administrator.

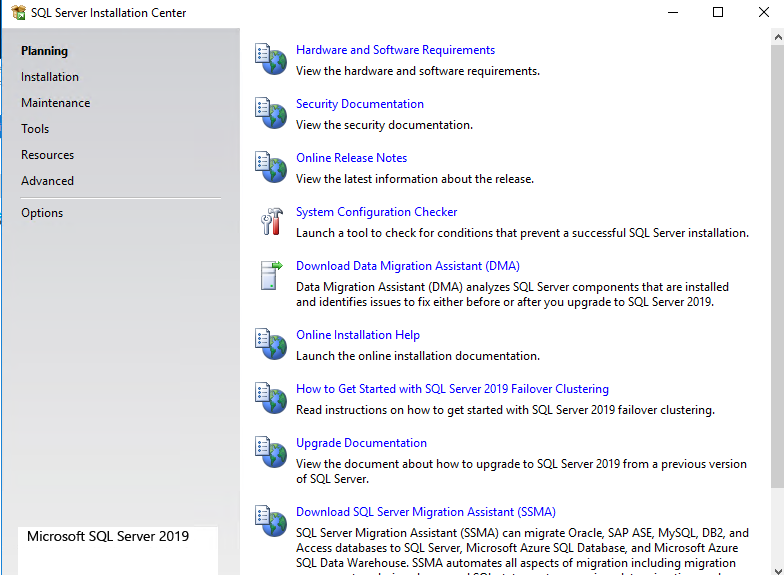

The SQL Server Installation Center will open to the Planning page. Access the links on this page to ensure your environment meets the minimum requirements for installation. If you are upgrading from a previous version of SQL Server, be sure to reference the upgrade documentation linked on this page. Once you have completed your planning research, click Installation on the left had pane.

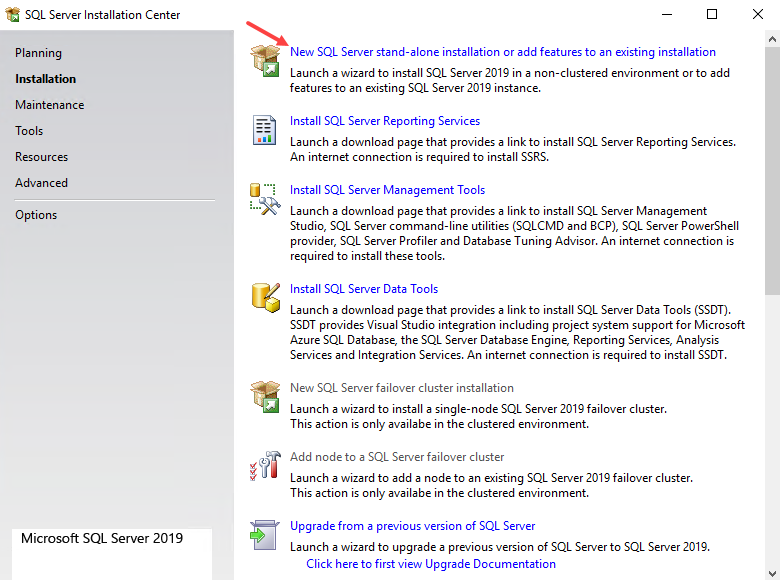

Click the first link to install a new SQL Server stand-alone instance. If you are upgrading from a previous version, click the link at the bottom of this pane. Refer to SQL Server 2019 supported version and edition upgrades

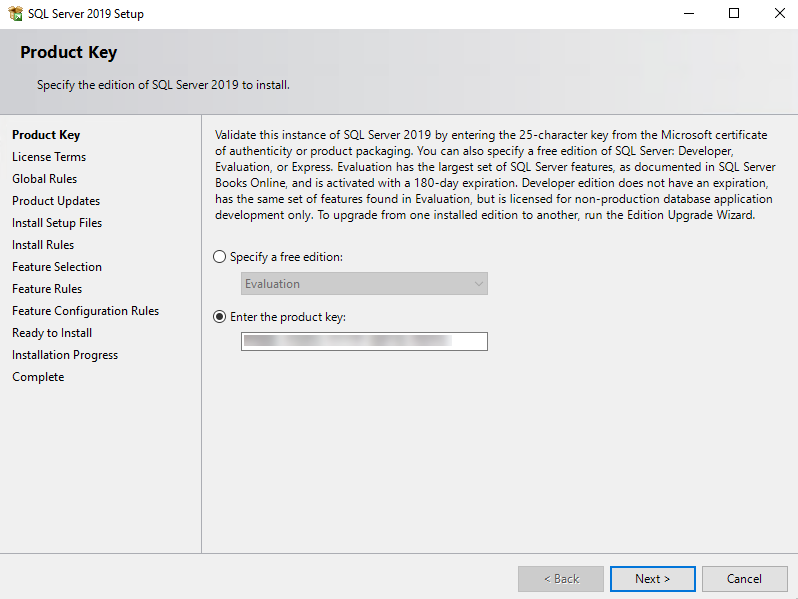

Enter the supplied product key when prompted and click Next.

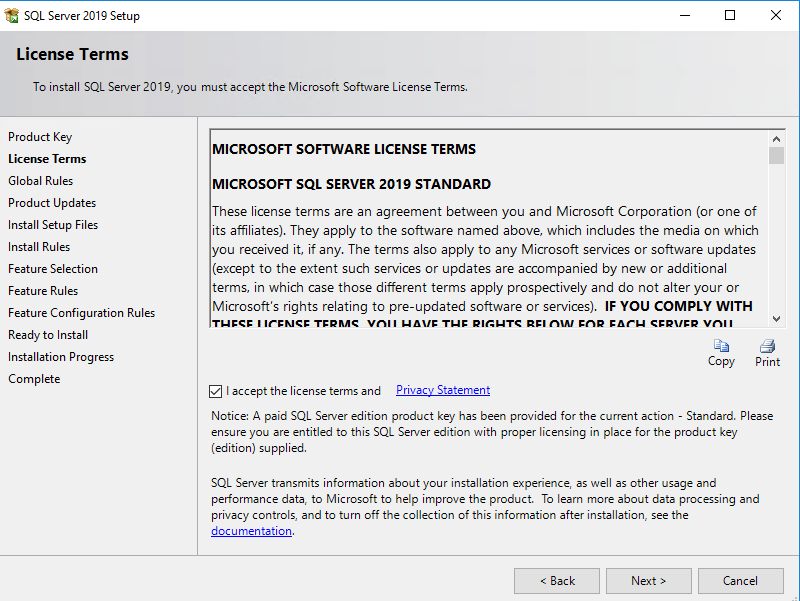

Accept the license terms then click Next.

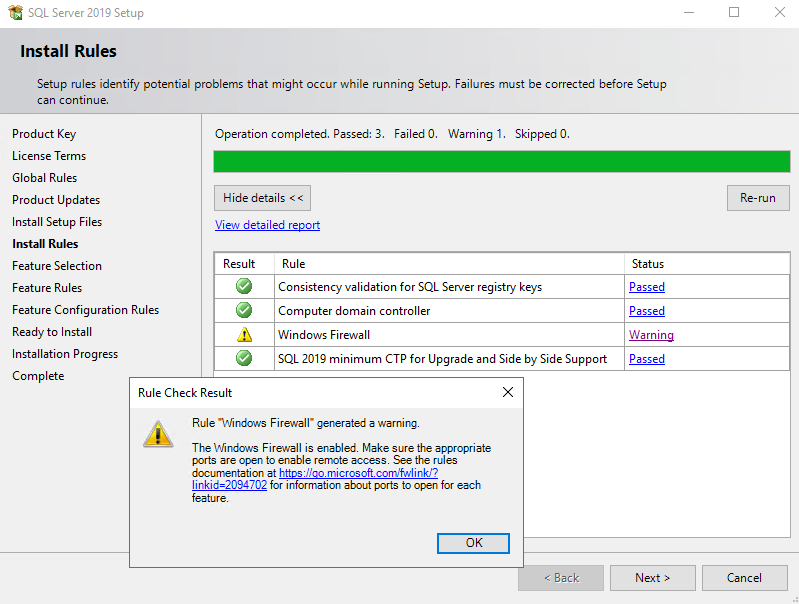

The install rules checker will run to verify basic requirements. Clicking on the Windows Firewall warning link will remind you that you may need to open ports depending on your application needs. Click Next.

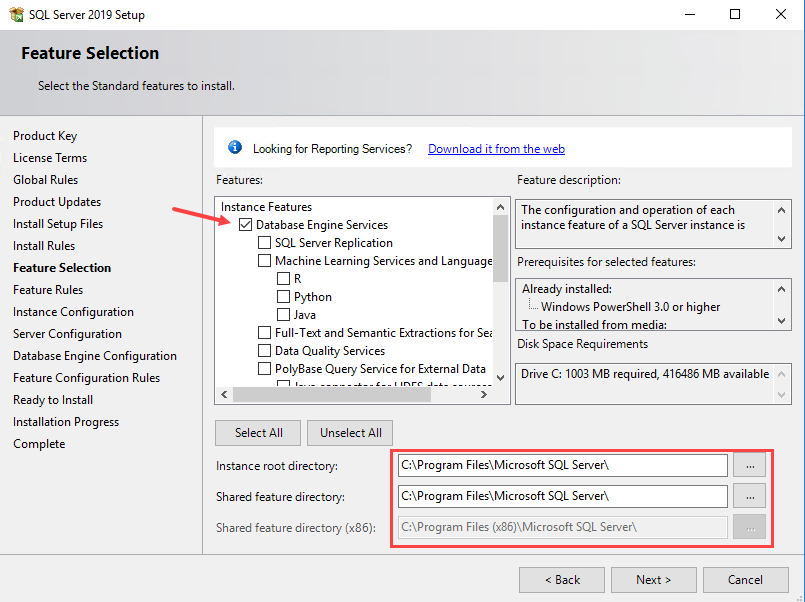

Check the box next to Database Engine Services, at a minimum, to install a new SQL Server instance. Other features can be installed at this time as needed. Note the default install location of the instance and shared features, and change if needed for your environment. Click Next.

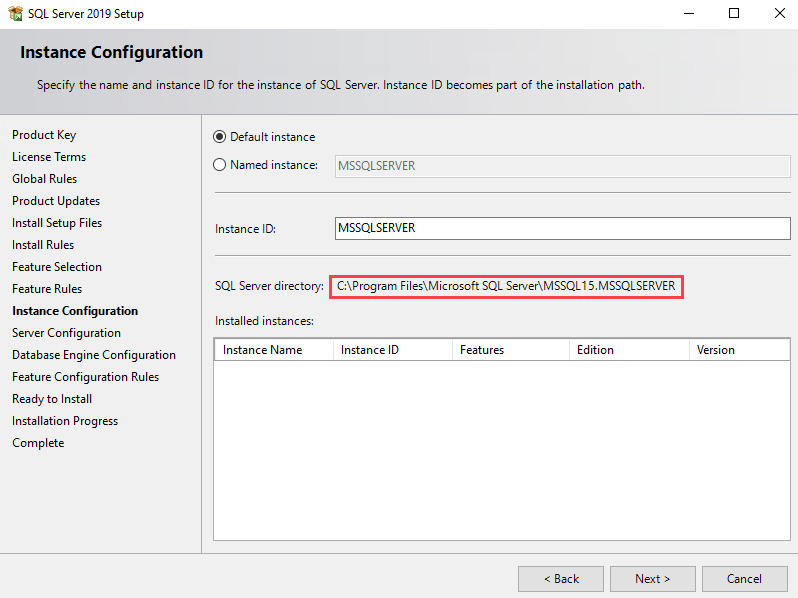

Choose the default MSSQLSERVER instance name, or specify a custom name for the instance. Note that the instance name will be part of the SQL Server directory. Click Next.

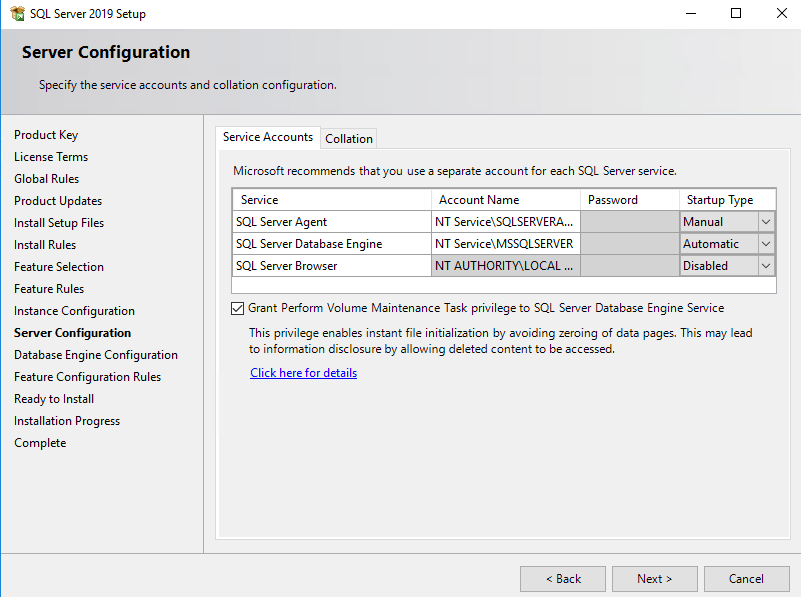

Configure the startup type for each of the services listed based on your needs. These can always always be changed later in the Windows Services Manager. Microsoft recommends checking the box next to “Grant Perform Volume Maintenance Task…” to enable instant file initialization. This allows for better performance since deleted disk content is overwritten only as new data is written to files. As Microsoft clarifies in this document, deleted data not overwritten could theoretically still be accessed, however, they state the benefits of instant file initialization outweigh the security risk. Click Next.

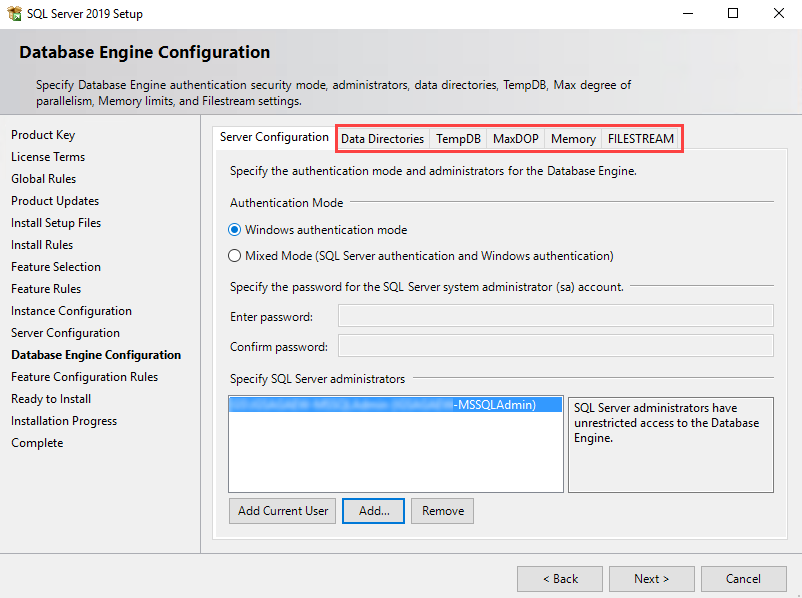

Microsoft’s best-practice recommendation is to use Windows authentication mode whenever possible, unless there is a specific need for SQL Server authentication. Click Add to add at least one administrator account. Click the other tabs highlight above to customize the install to meet your needs. Click Next.

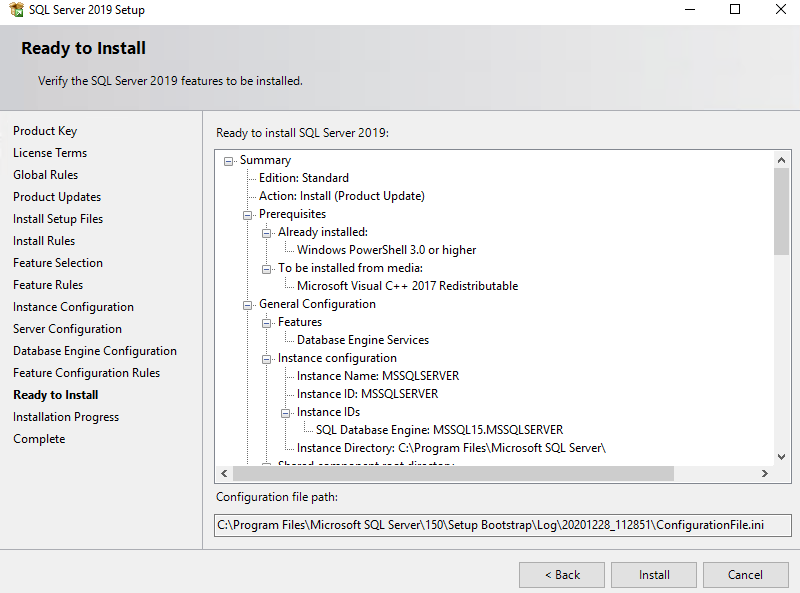

Review the installation summary. If no changes are needed, click Install.

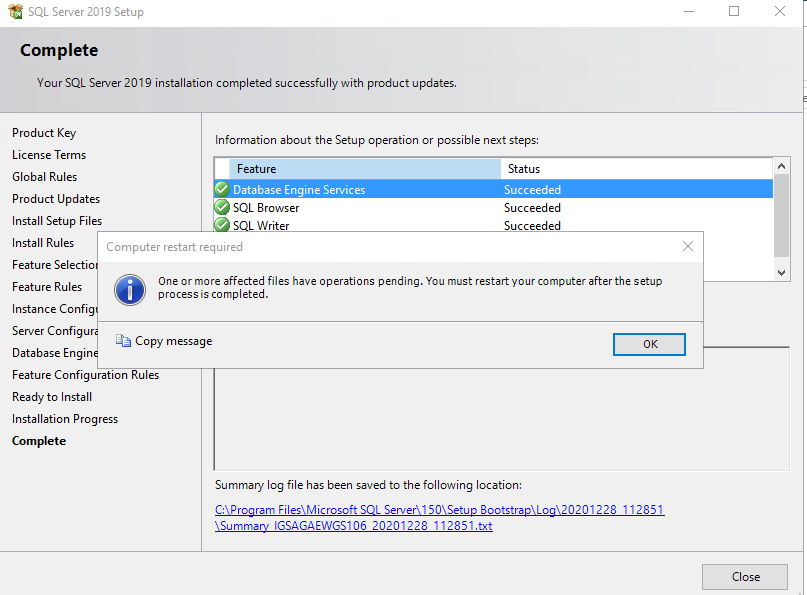

Once installation completes, you will be prompted to restart the server. Click OK to acknowledge the message, then click Close. Restart the server to finalize installation.

After successfully installing SQL Server 2019, be sure to follow the guidance under the Securing SQL Server section of this page to apply the latest updates.

If needed, install other applications such as SQL Server Management Tools or Reporting Services from the SQL Server Installation Center.

The latest updates to SQL Server can be found here. Determine the version of SQL currently installed following the guidance here.

The GS: Critical to Low Security Patches Needed – SQL Server BigFix WebReport should be referenced to see a list of computers in your environment and the SQL patches that are needed on those computers. Beginning with the February 2021 ePatching cycle, the GS: ePatching Windows Security Patches – <month>  <year> (SQL Server Non-Clustered) BigFix baseline will be applied to all production systems.

In the example below, we walk through installation of a SQL Server 2019 Cumulative Update (CU). The steps below assume you have identified the latest CU and have downloaded it from the Microsoft website.

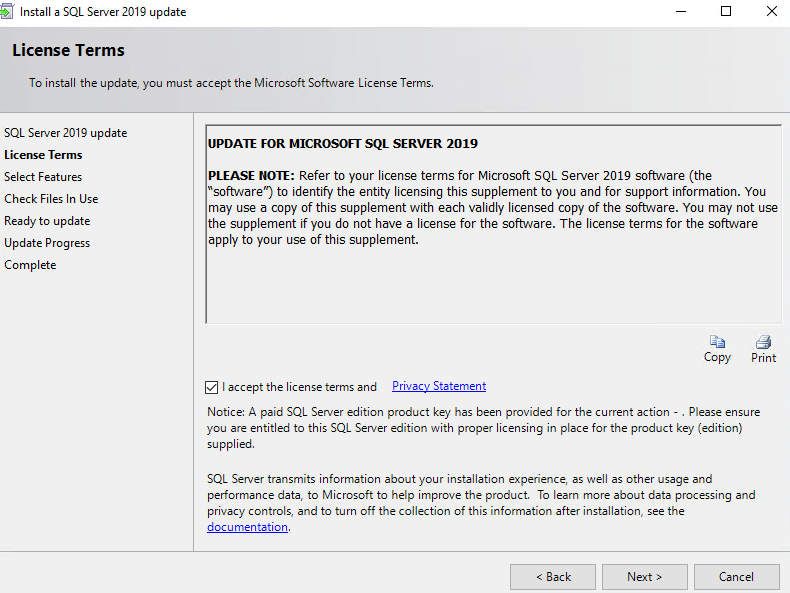

Right-click the update install package and Run As Administrator. Accept the license terms and click Next.

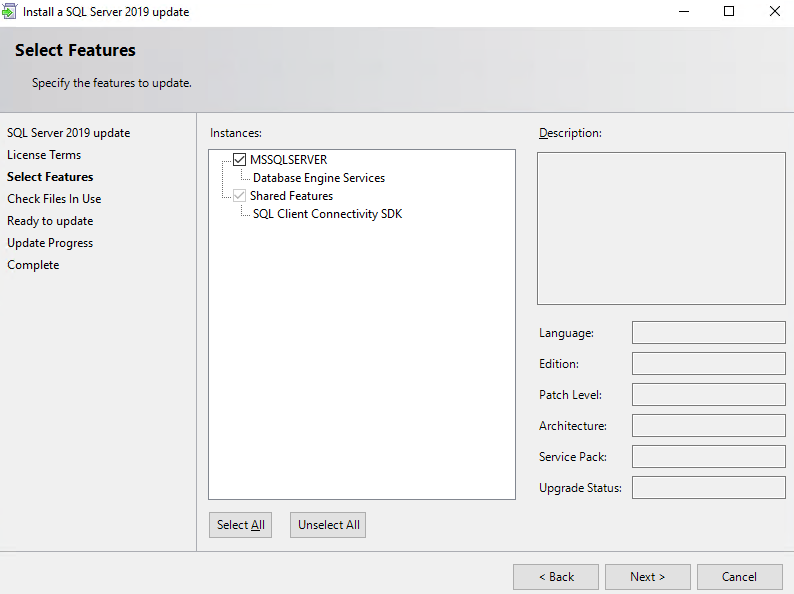

Ensure your SQL Server instance is checked and click Next.

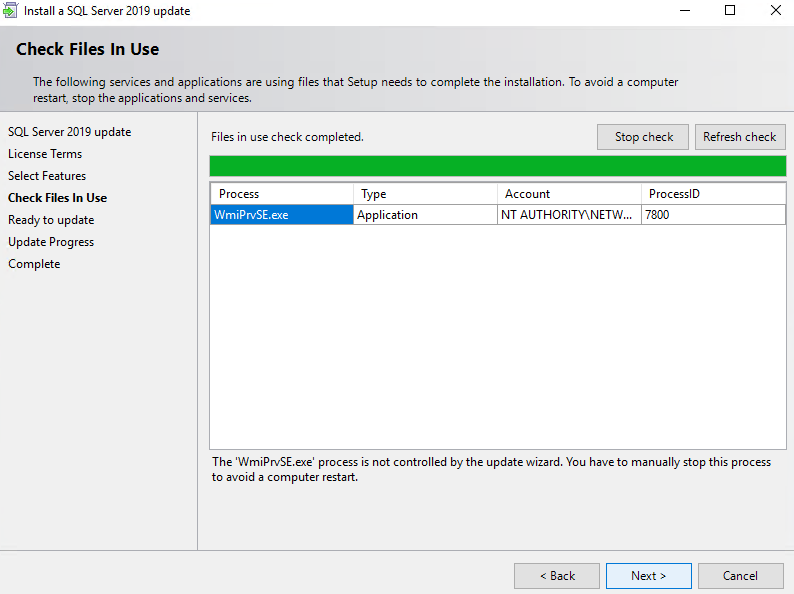

Follow the guidance from the files in use check and click Next.

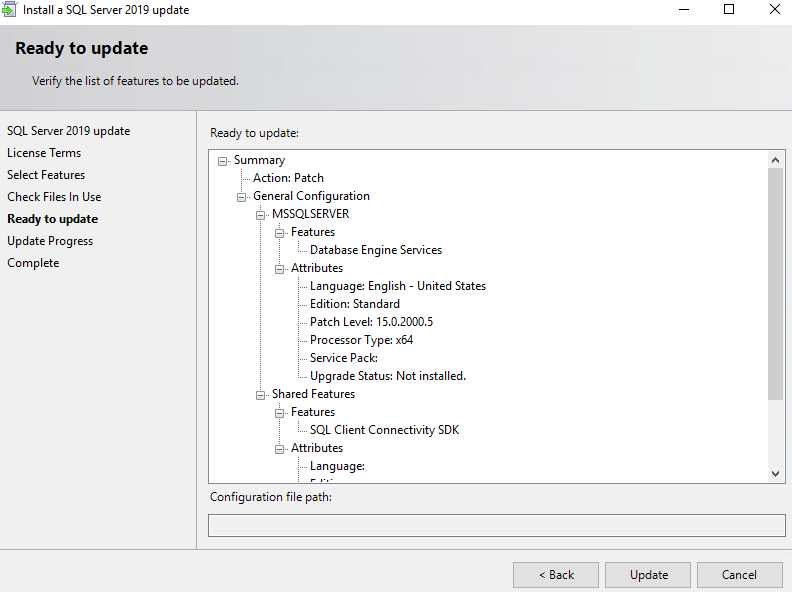

Review the installation summary, then click Update.

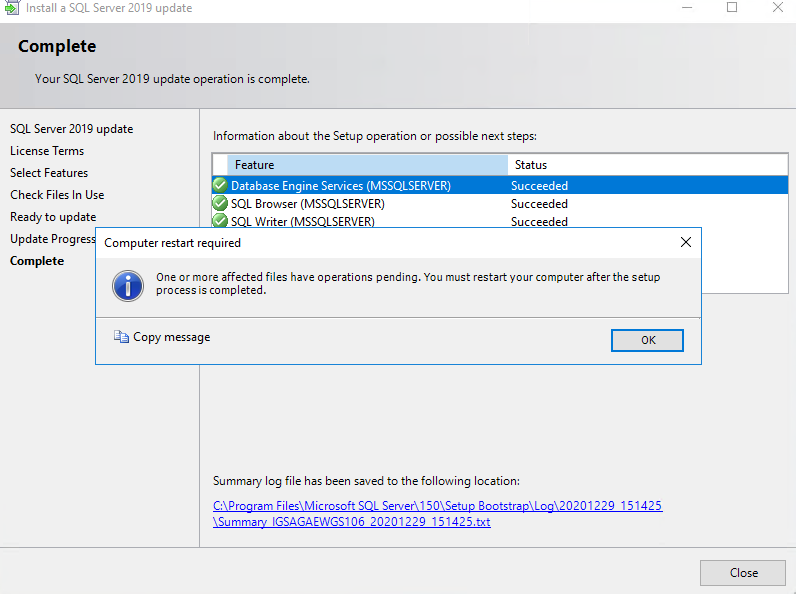

Depending on which services are running on your server, you may need to restart. Once completed, verify your SQL Server is up to the latest version.

Some earlier versions of MSSQL were installed with a certificate that was signed with a weak algorithm (SHA1). Tenable may flag these instances under one or more plugin IDs. To remediate these vulnerabilities, local admins should replace the default weak SSL certificate with one signed by a certificate authority (CA) using a strong algorithm. Using Active Directory Certificate Services, admins can generate signed SSL certificates using DOI’s CA server. The steps below describe the process of configuring MSSQL to use the new signed certificate.

Given the variable nature of MSSQL deployments throughout USGS, Administrators are strongly encouraged to test these steps on non-production instances first.

1. If you haven’t already, request a signed SSL certificate using Active Directory Certificate Services and install it on the server. Instructions can be found here.
2. On the server, open MSSQL Server Configuration Manager. (Can’t find it? Look here)
3. Expand SQL Server Network Configuration, right-click on the Protocols for <instance name>, and click Properties.
4. Click the Certificate tab and select the new certificate from the drop-down. Click OK and restart SQL services when prompted.

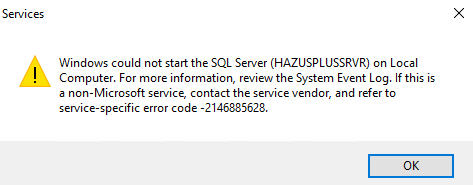

5. If the SQL service fails to start with the error shown below, this usually means that the account used to run the service does not have read permissions to the certificate.

• In this case, open certlm.msc to manage the computer’s certificates, navigate to the certificate, right-click it and click All Tasks > Manage Private Keys.

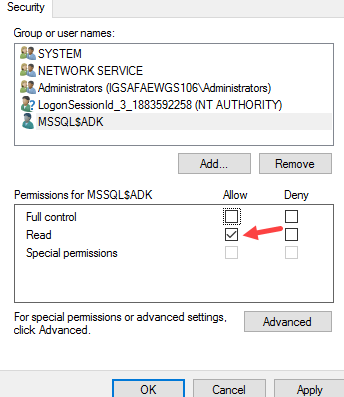

  • Add the account that runs the SQL service and assign only Read access, then click OK.

• You should now be able to start the SQL service.

Force Encryption

To force encrypted communications for all SQL clients, perform the following steps on the database:

1. On the server, open MSSQL Server Configuration Manager. (Can’t find it? Look here)
2. Expand SQL Server Network Configuration, right-click on the Protocols for <instance name>, and click Properties.

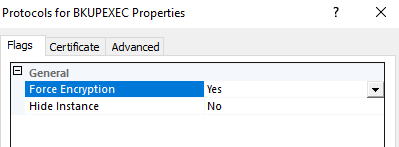

3. Click the Flags tab, click the dropdown next to Force Encryption and select Yes. Click OK and restart SQL services when prompted.

More details on encrypting SQL connections can be found here.
